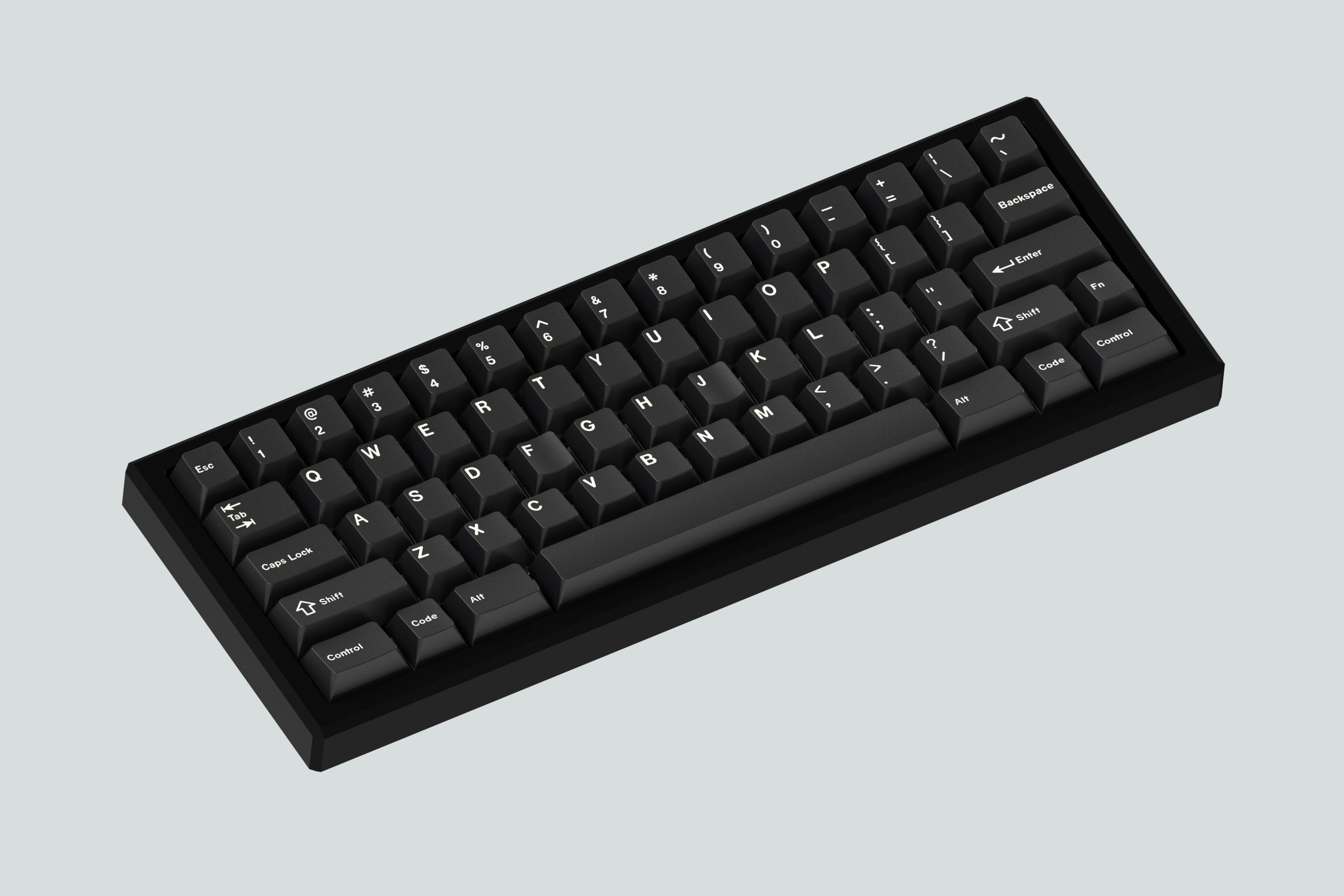

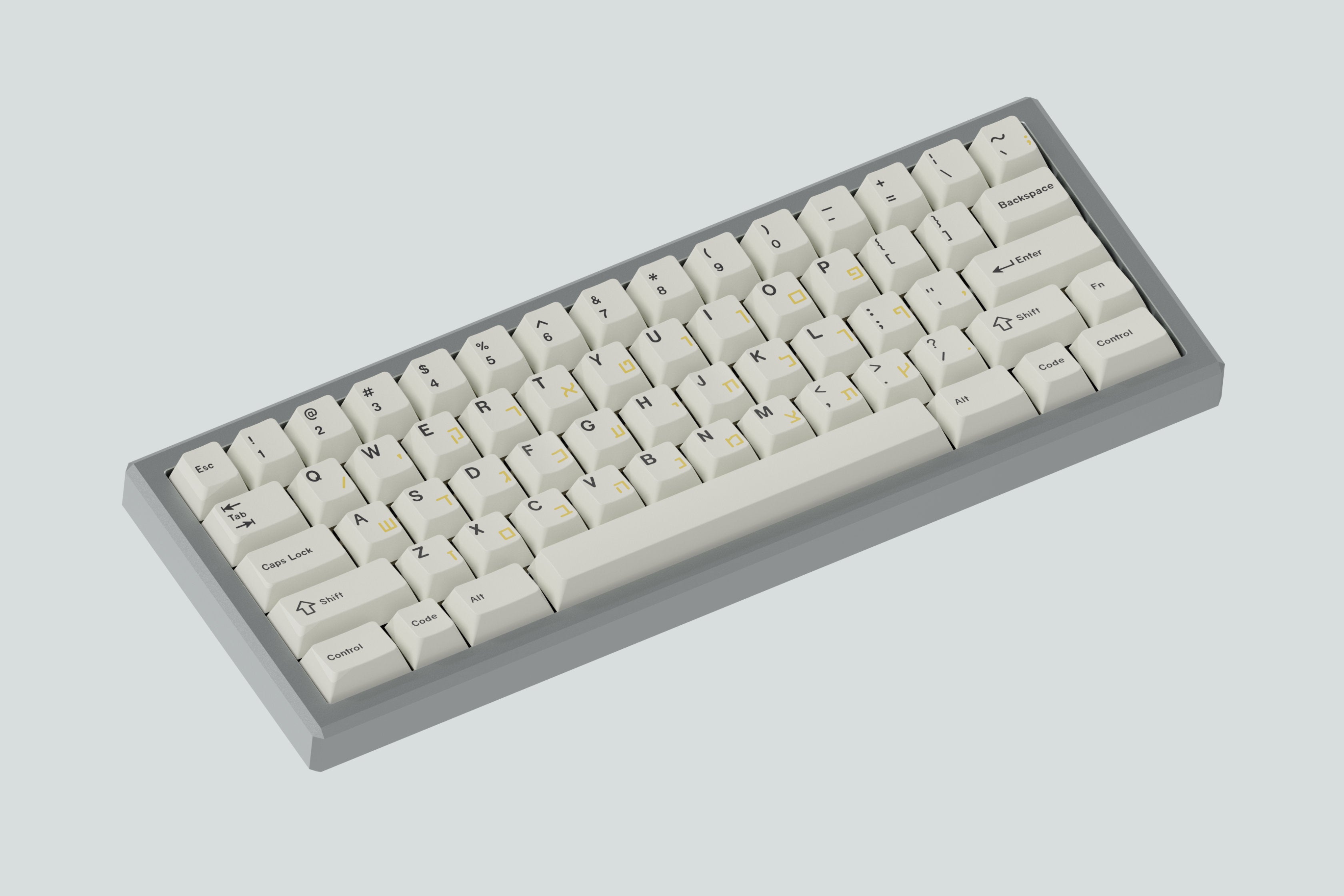

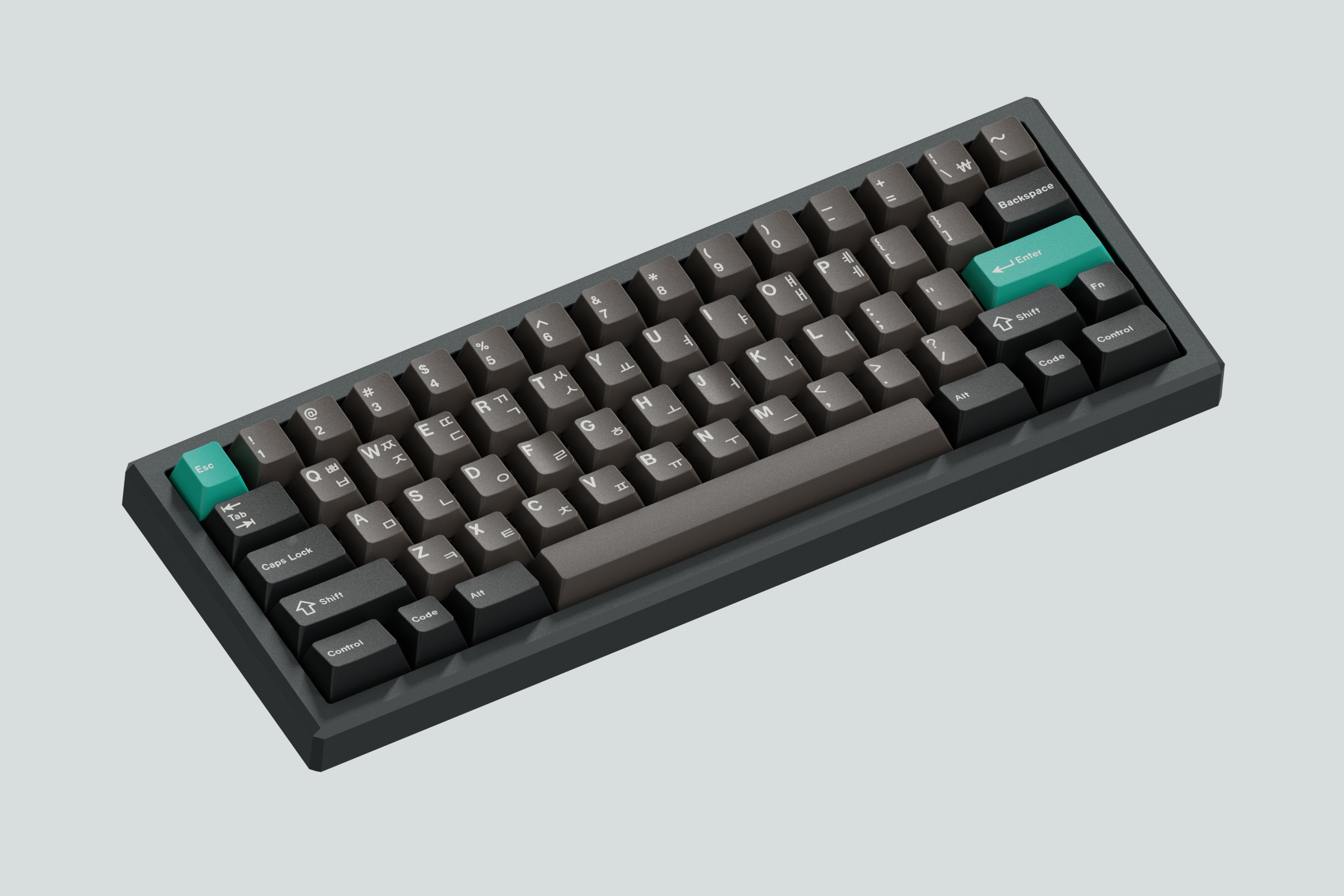

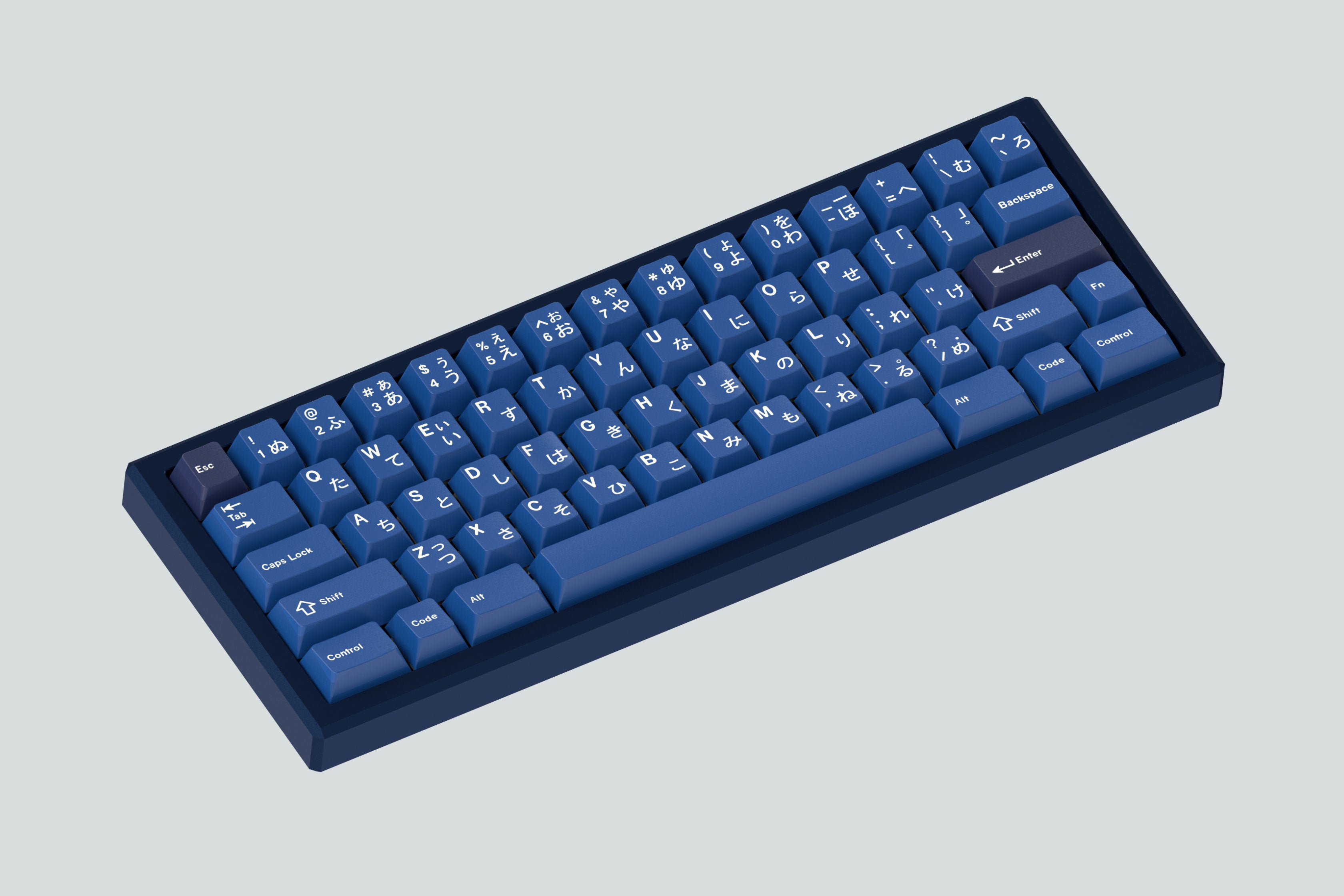

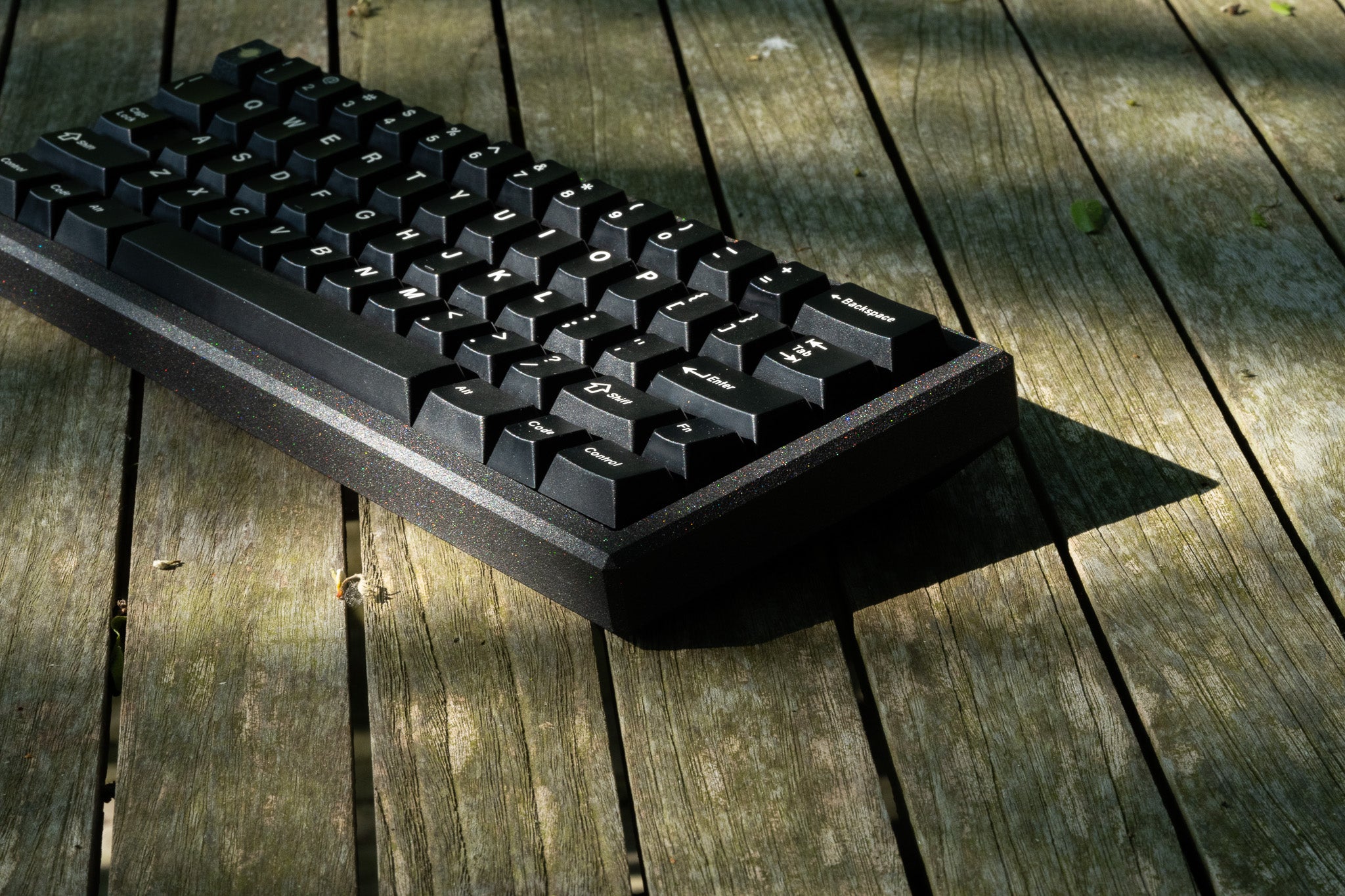

The SALVATION combines the soft and vibrant typing experience of an innovative leaf spring mounting system with a 60% tray case design.

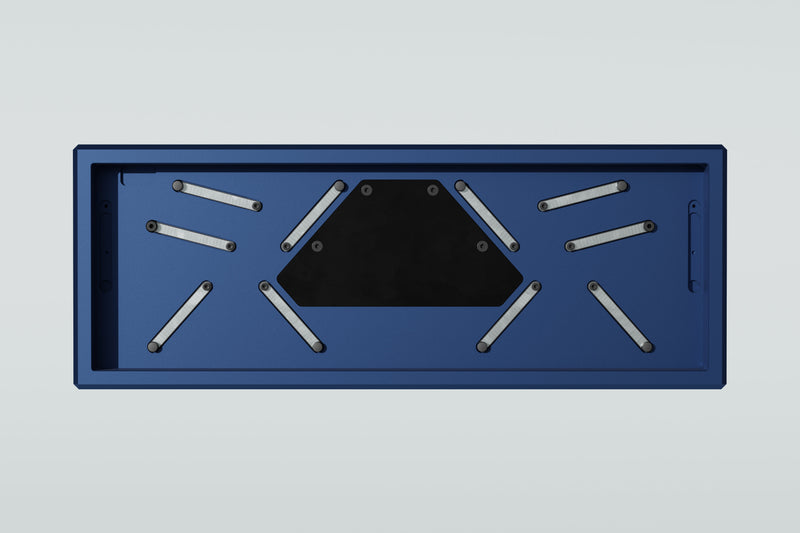

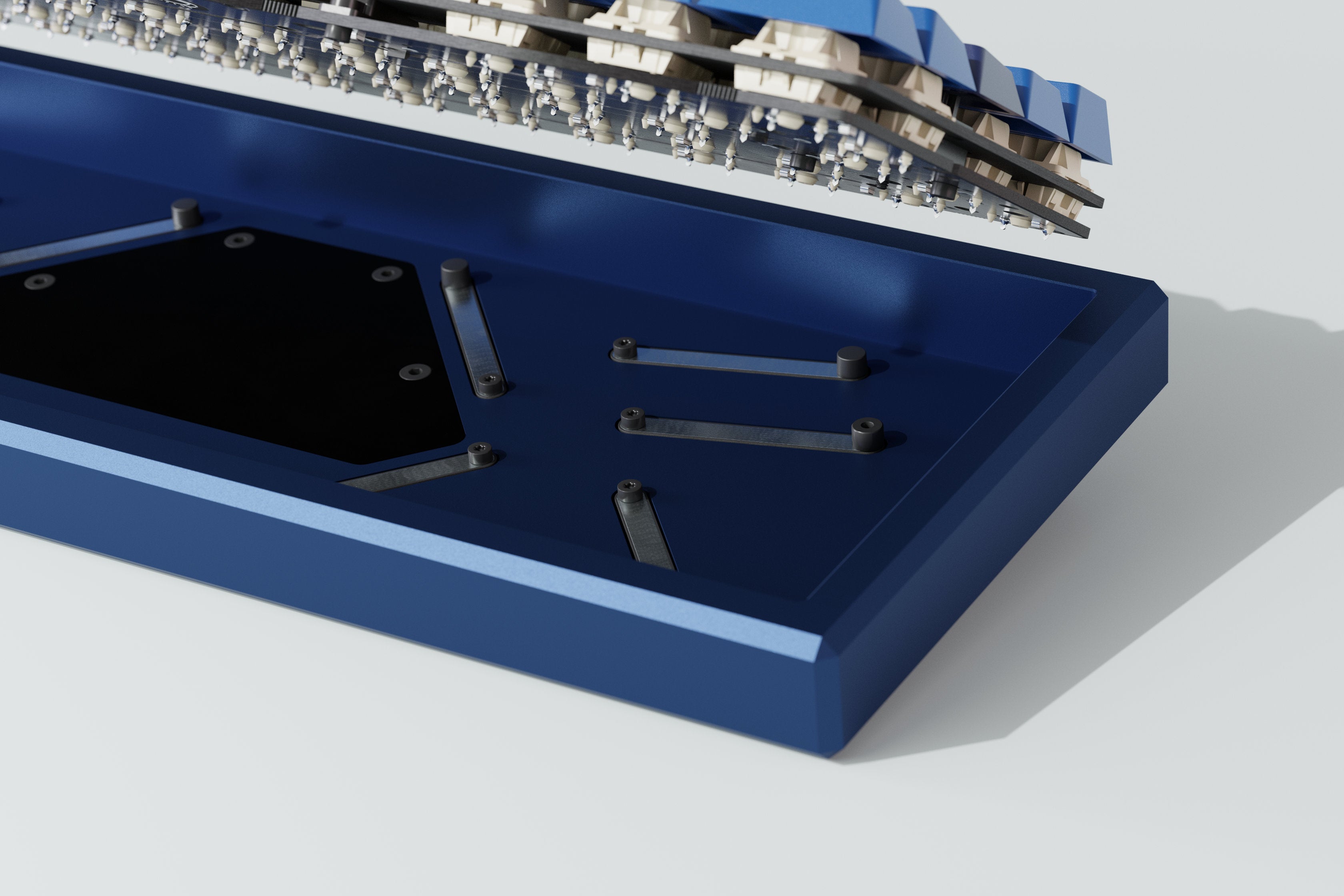

The PCB is supported by silicon rubber standoffs attached to FR4 (fiberglass) leaf springs mounted to the case. Foam pads underneath the leaf springs provide vibration dampening and force modulation.
The leaf springs provide exceptional flexibility, allowing the entire plate/PCB subassembly to yield under keystrokes and vibrate in isolation from the case. The result is a typing experience that is soft and vibrant across the whole keyboard.

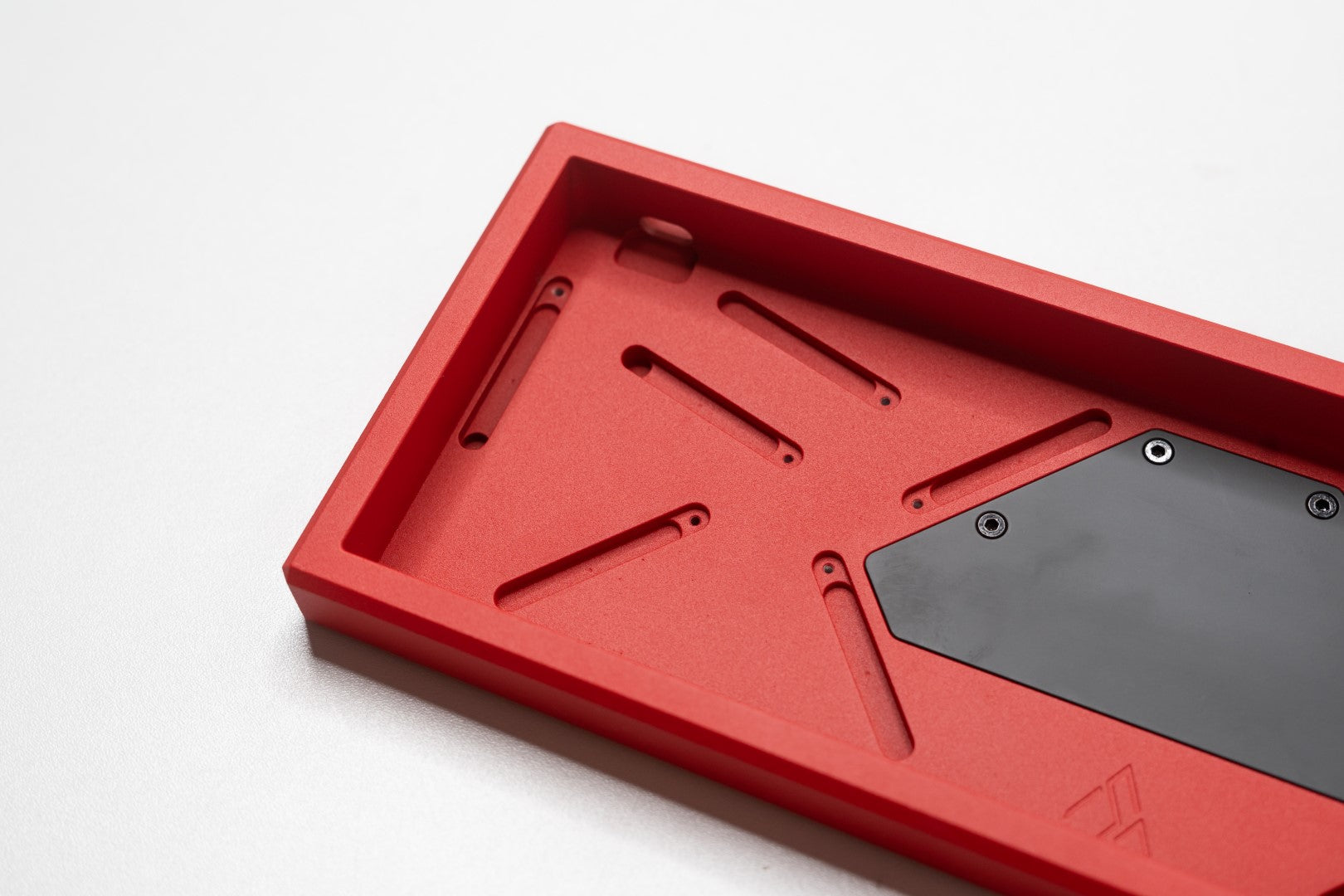

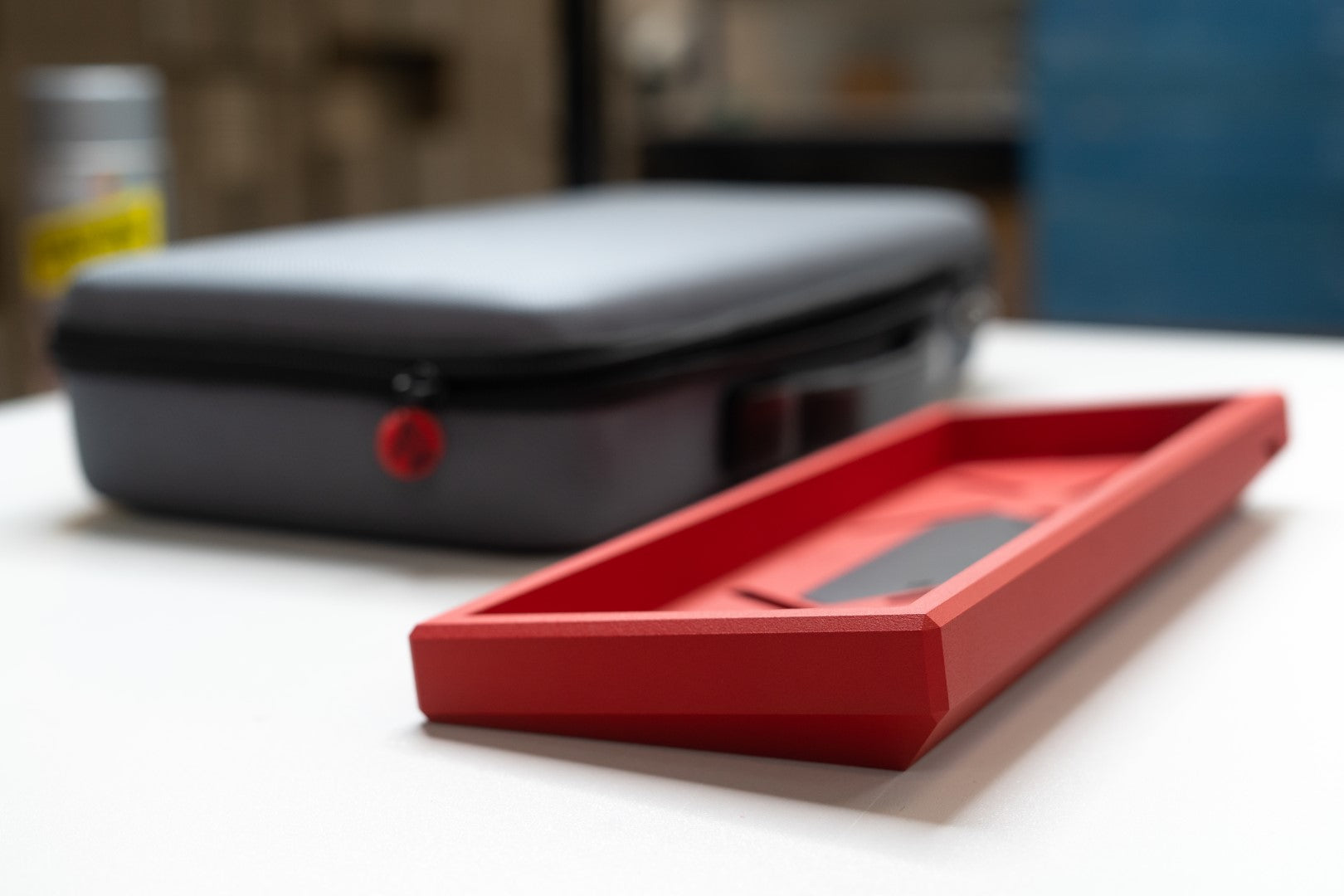

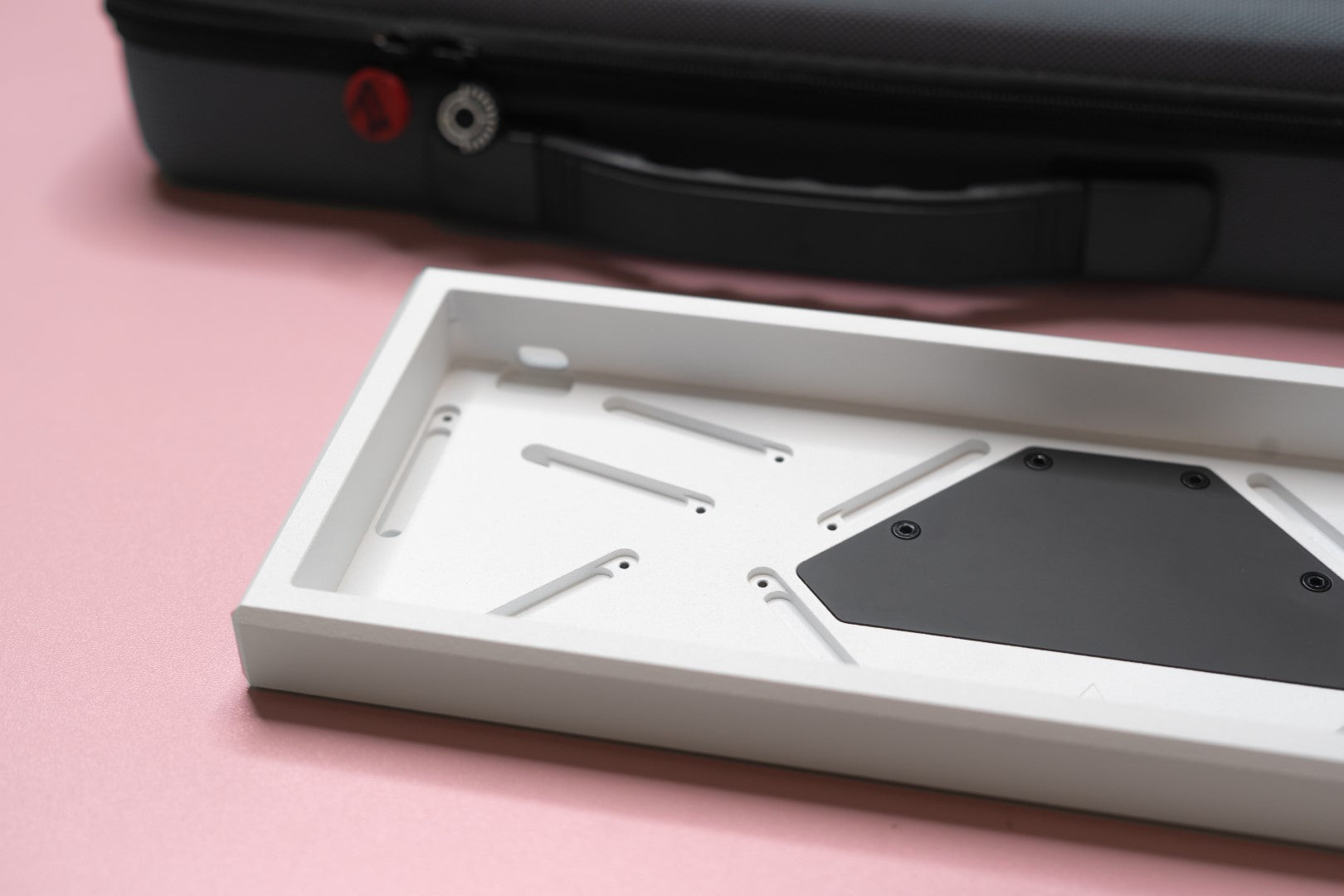

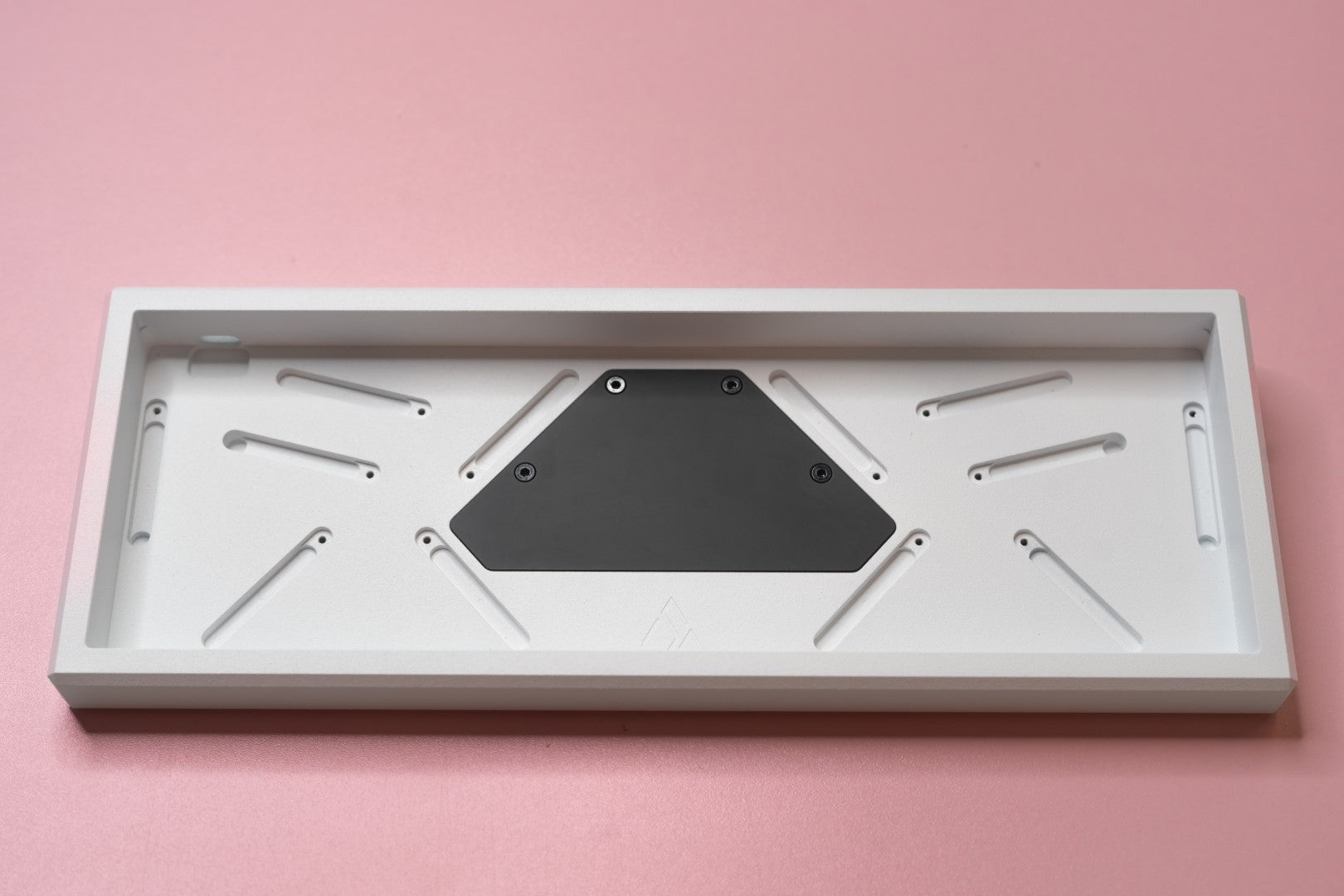

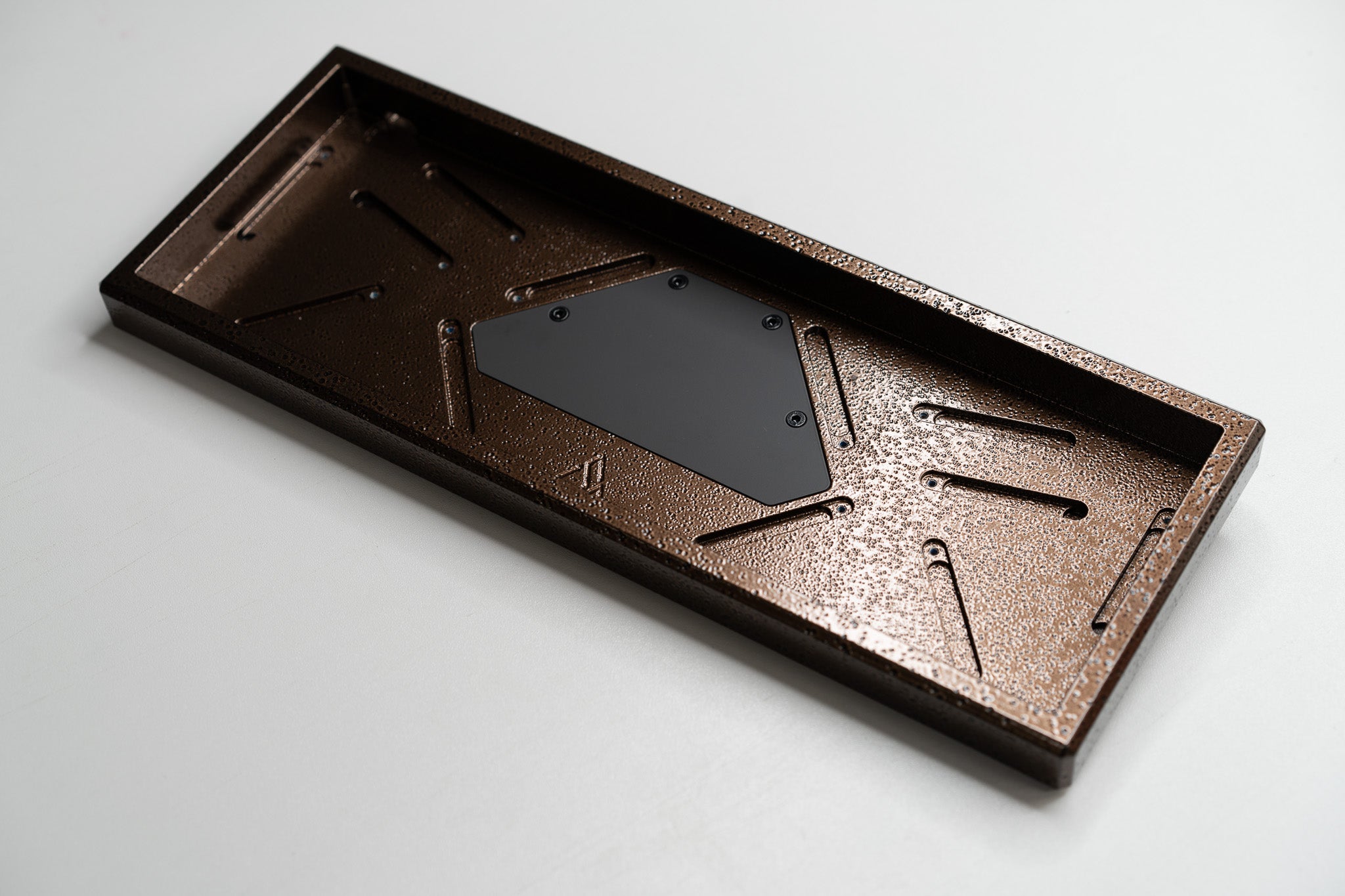

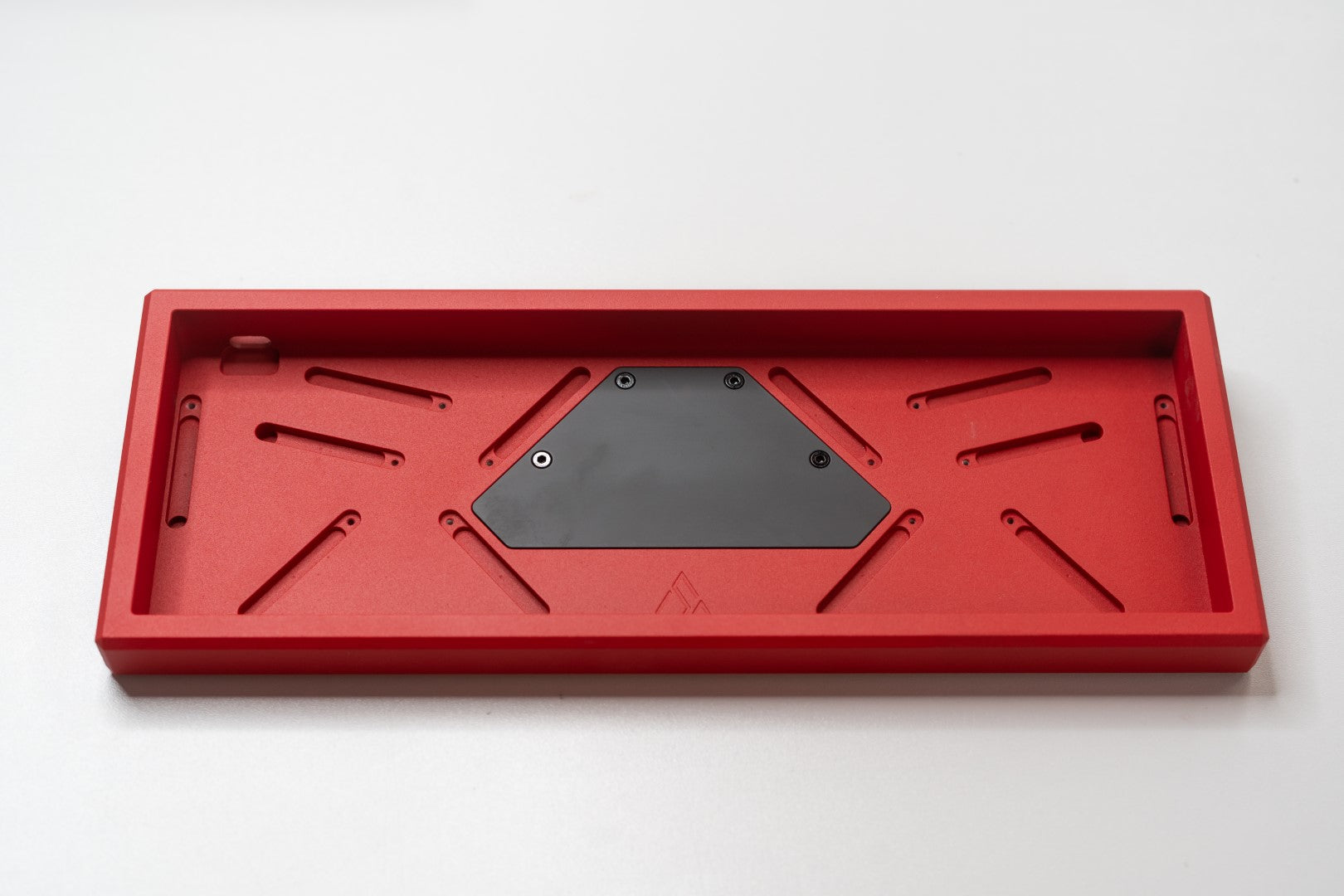

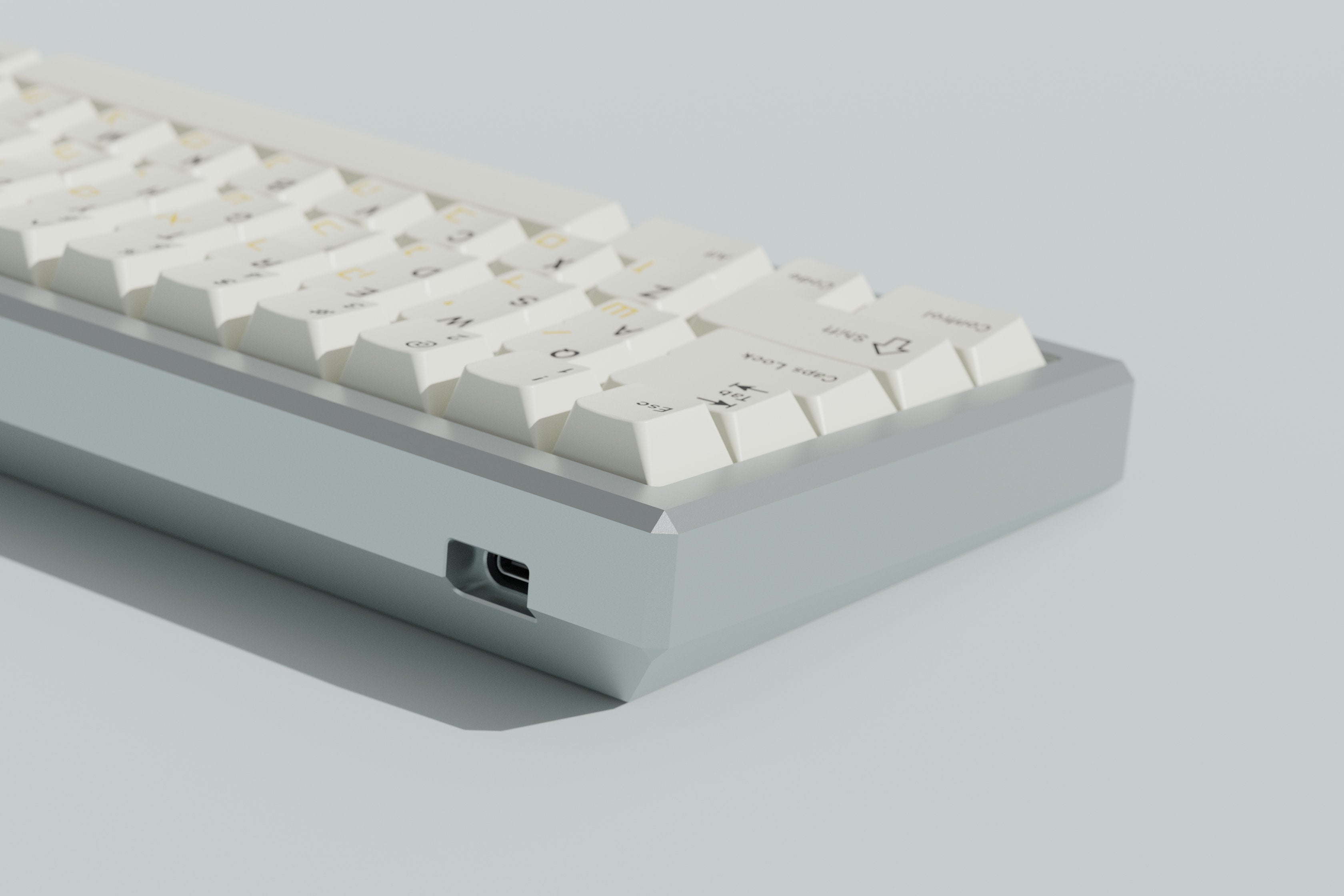

1 x SALVATION Aluminium Case

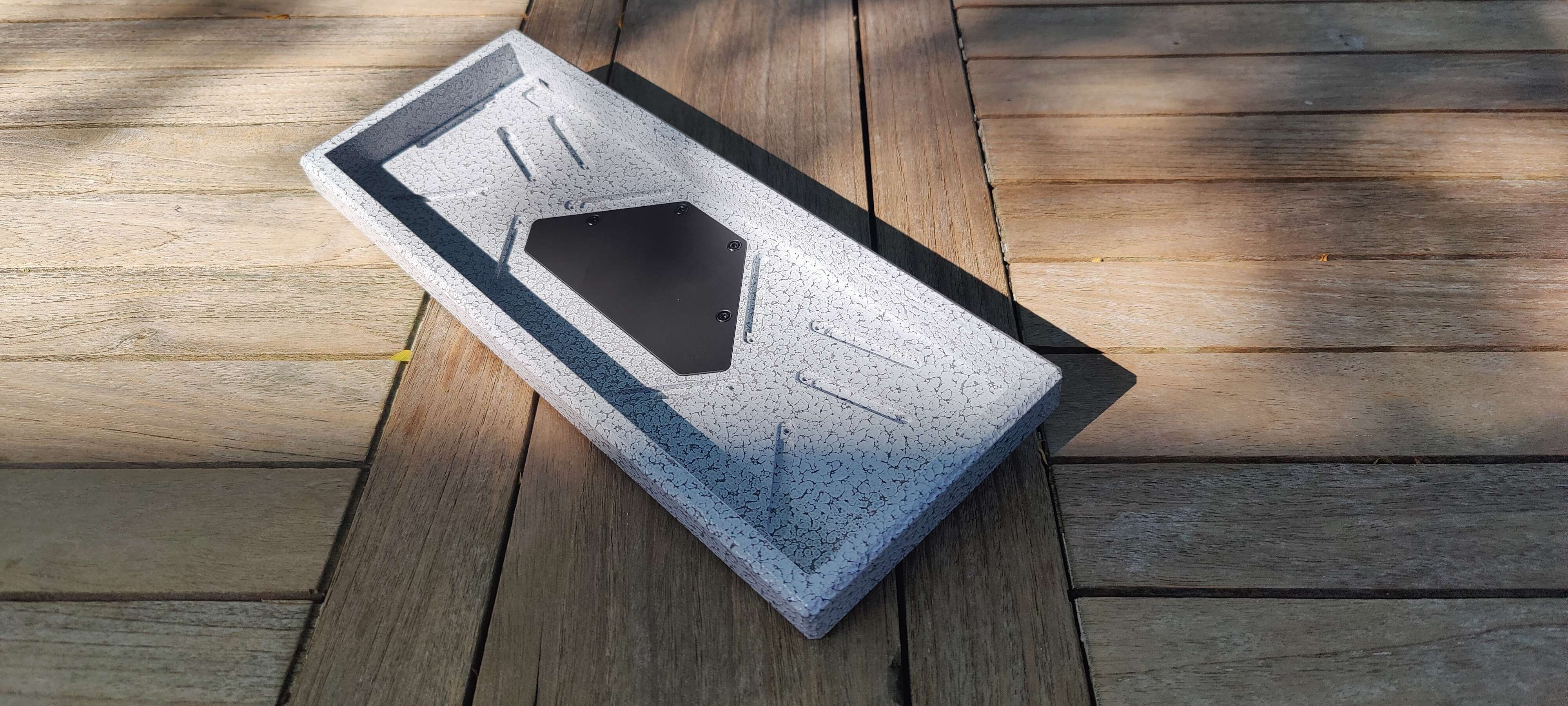

1 x SALVATION Brass Internal Weight

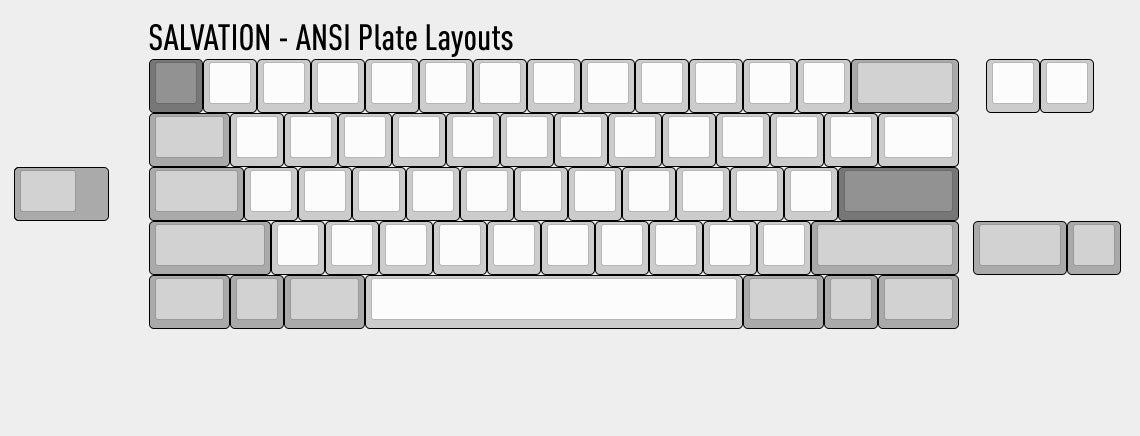

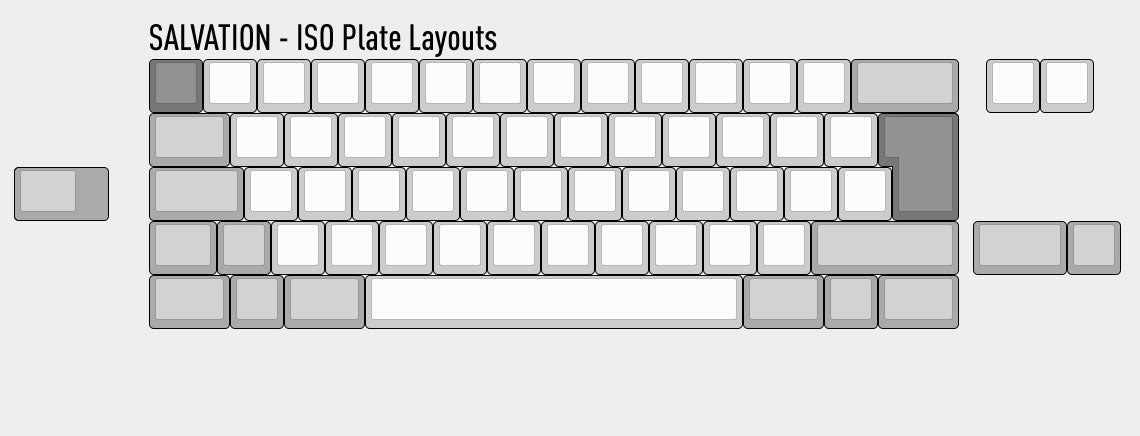

1 x SALVATION FR4 Plate (ANSI or ISO)

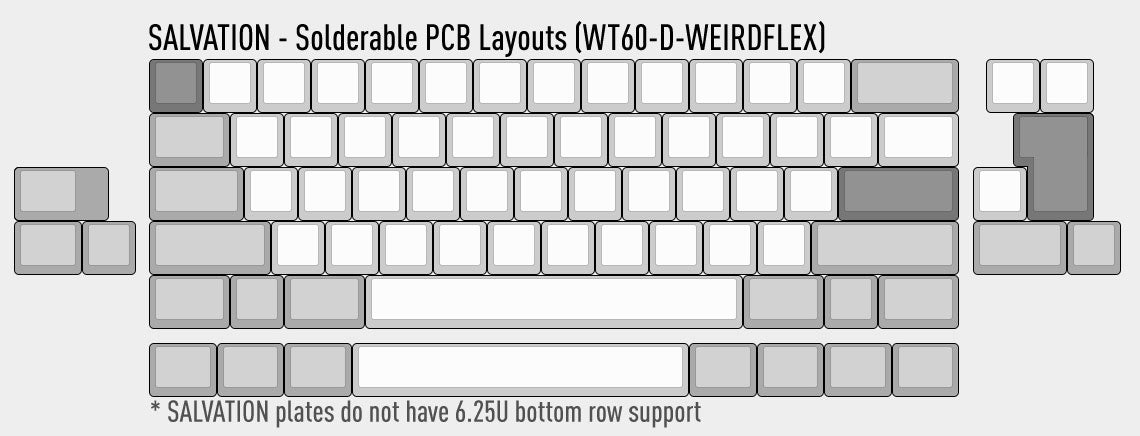

1 x wilba.tech WT60-D WEIRDFLEX PCB (solderable) or

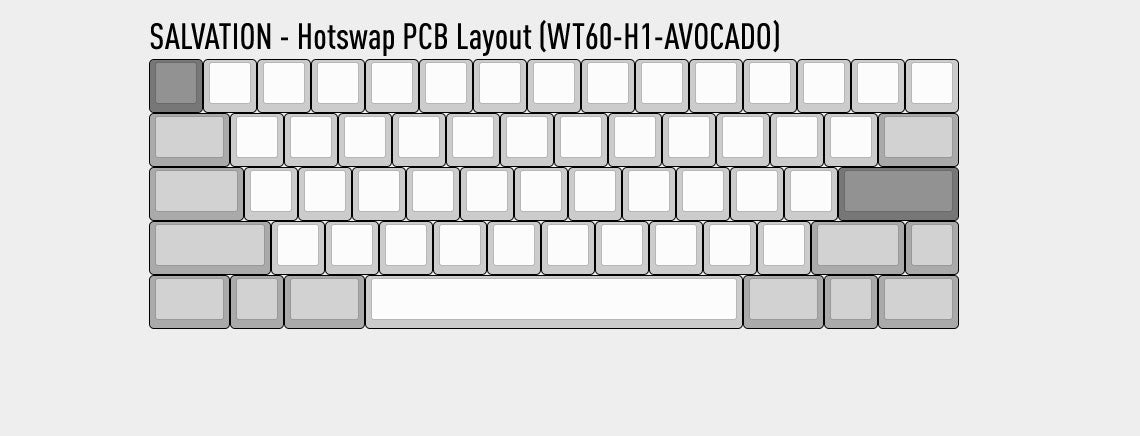

wilba.tech WT60-H1 AVOCADO PCB (hotswap)

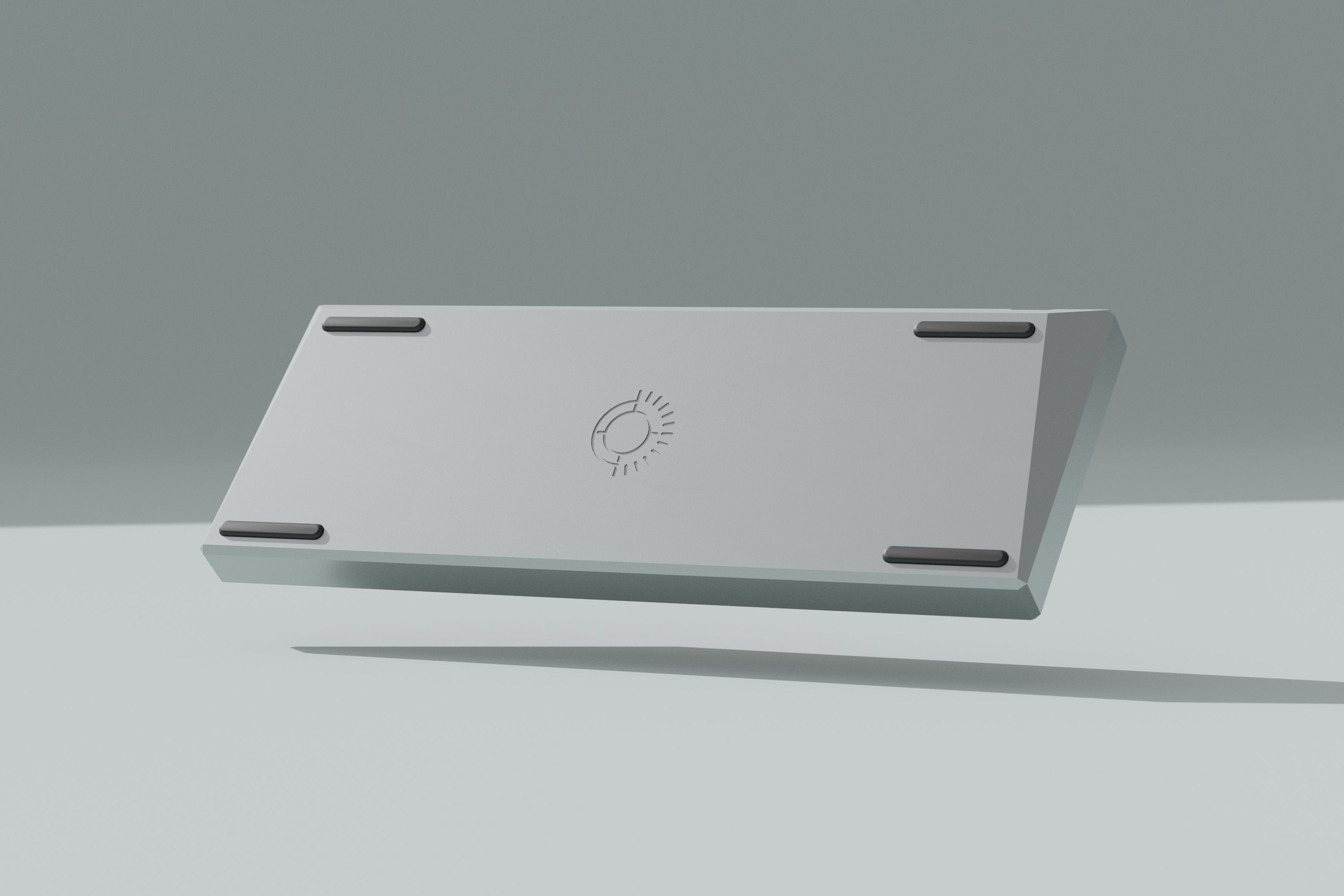

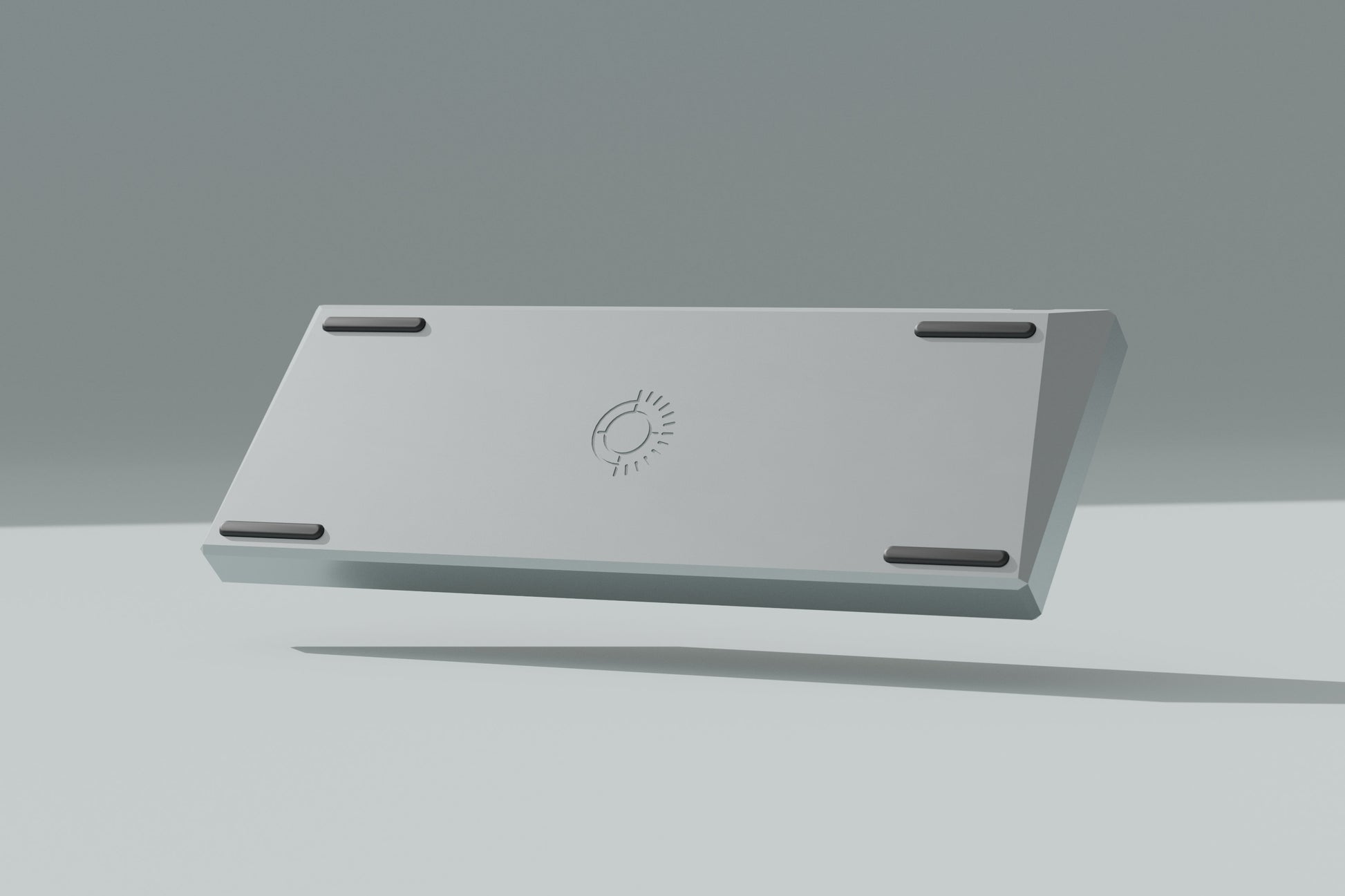

4 x SKUF Silicone Rubber Feet

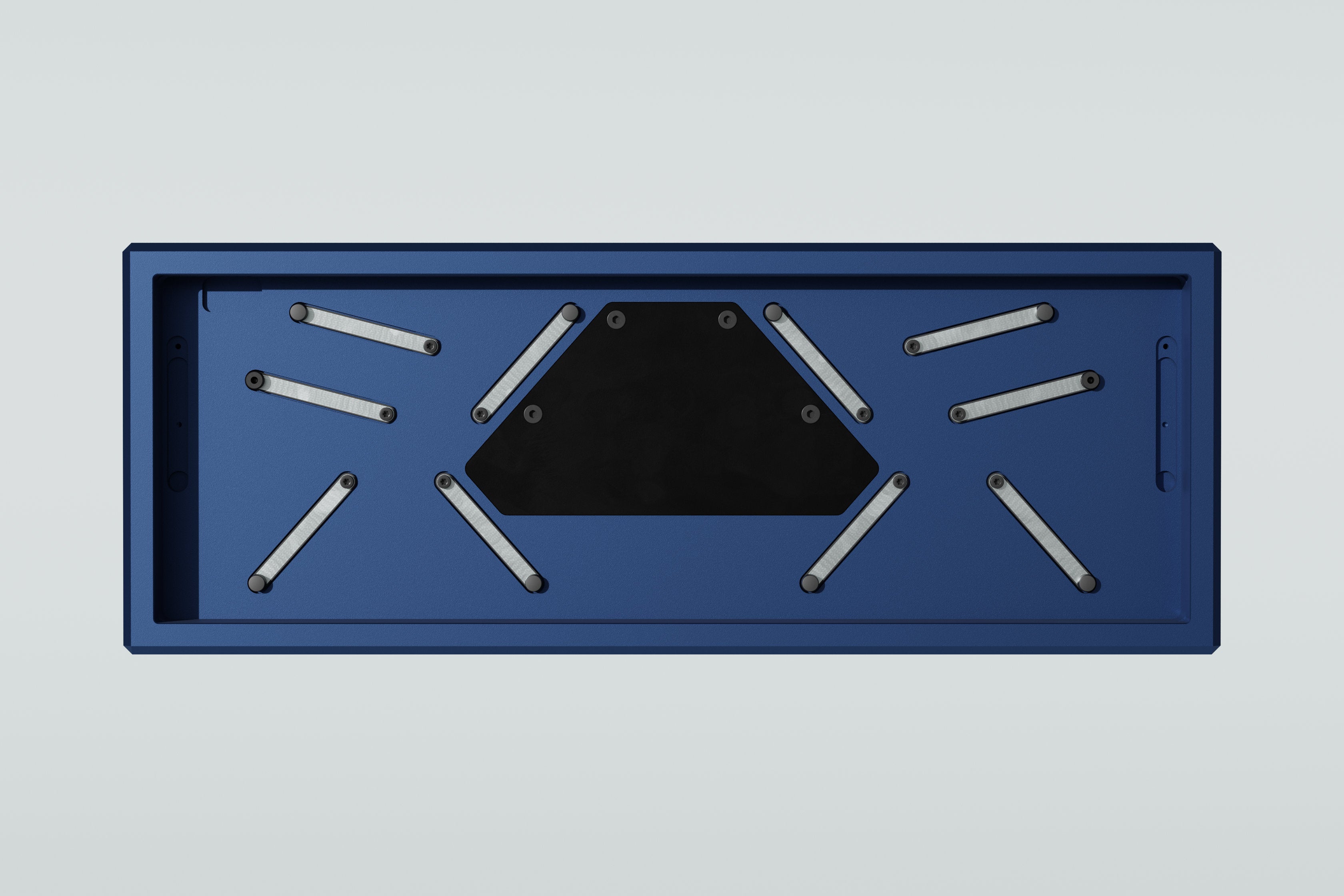

12 x SALVATION FR4 Leaf Springs
16 x Silicone Rubber Standoffs
16 x PORON Foam Pads
4 x M2x3.5mm threaded spacers (for PCB mount to leaf springs)
8 x M2x3mm screws (for PCB mount to leaf springs)
12 x M2x4mm screws (for leaf spring mount to case)
4 x M3x5mm screws (for internal weight mount to case)
WEIGHT AND DIMENSIONS
Aluminium Case: 987 g (2.18 pound)
Brass Internal Weight: 208 g (0.46 pound)
Width: 304.80 mm (12.00 inch)
Depth: 115.31 mm (4.54 inch)

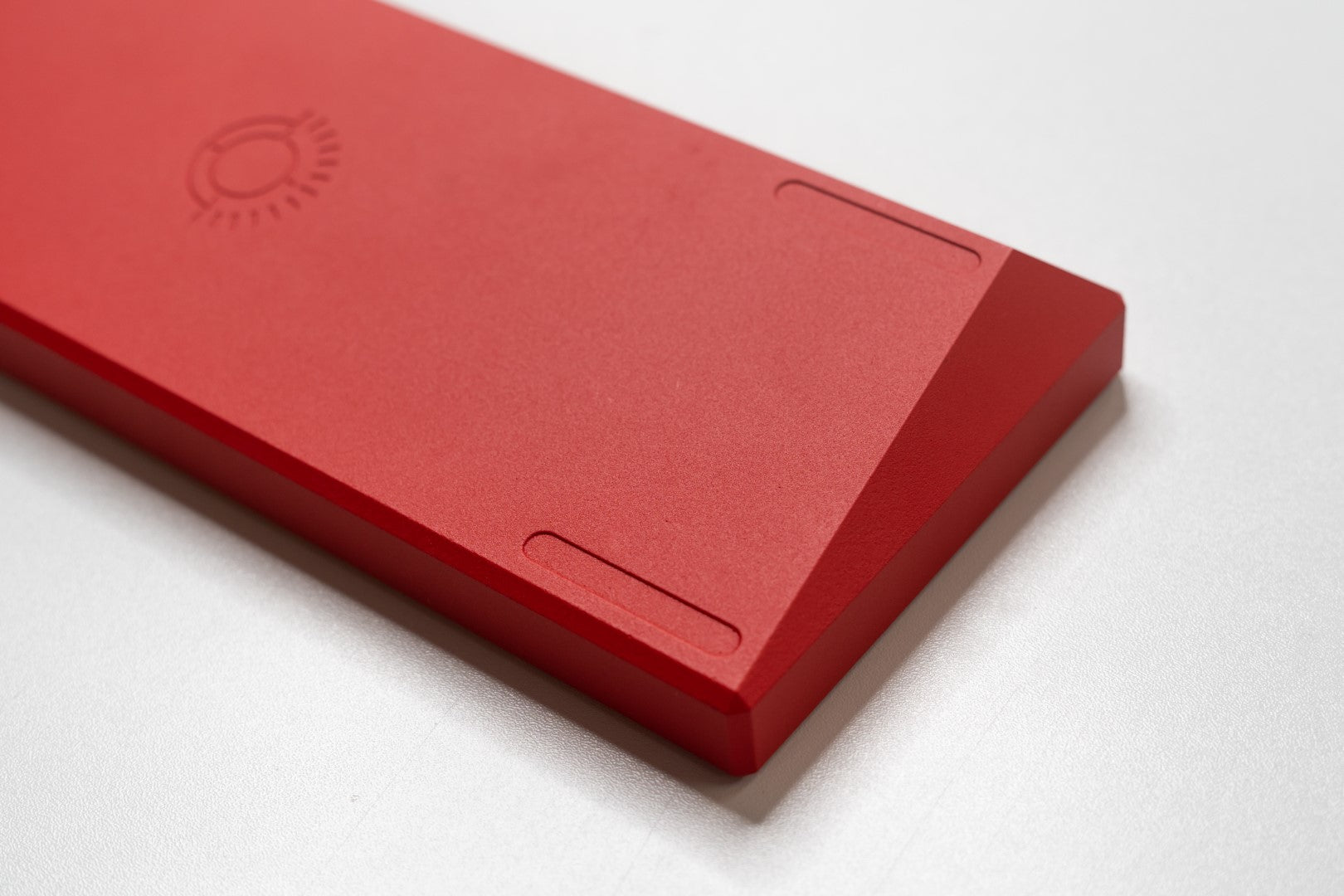

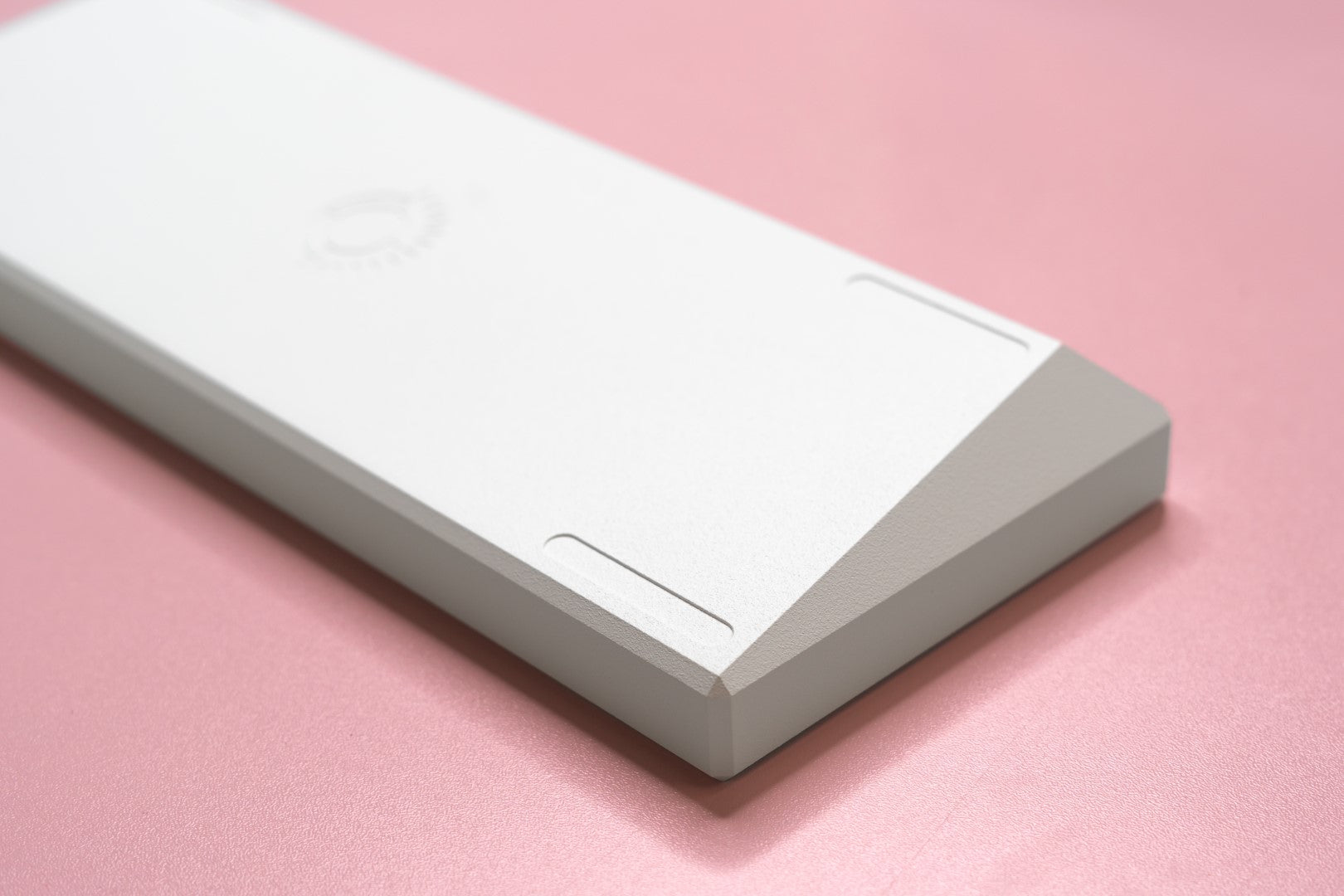

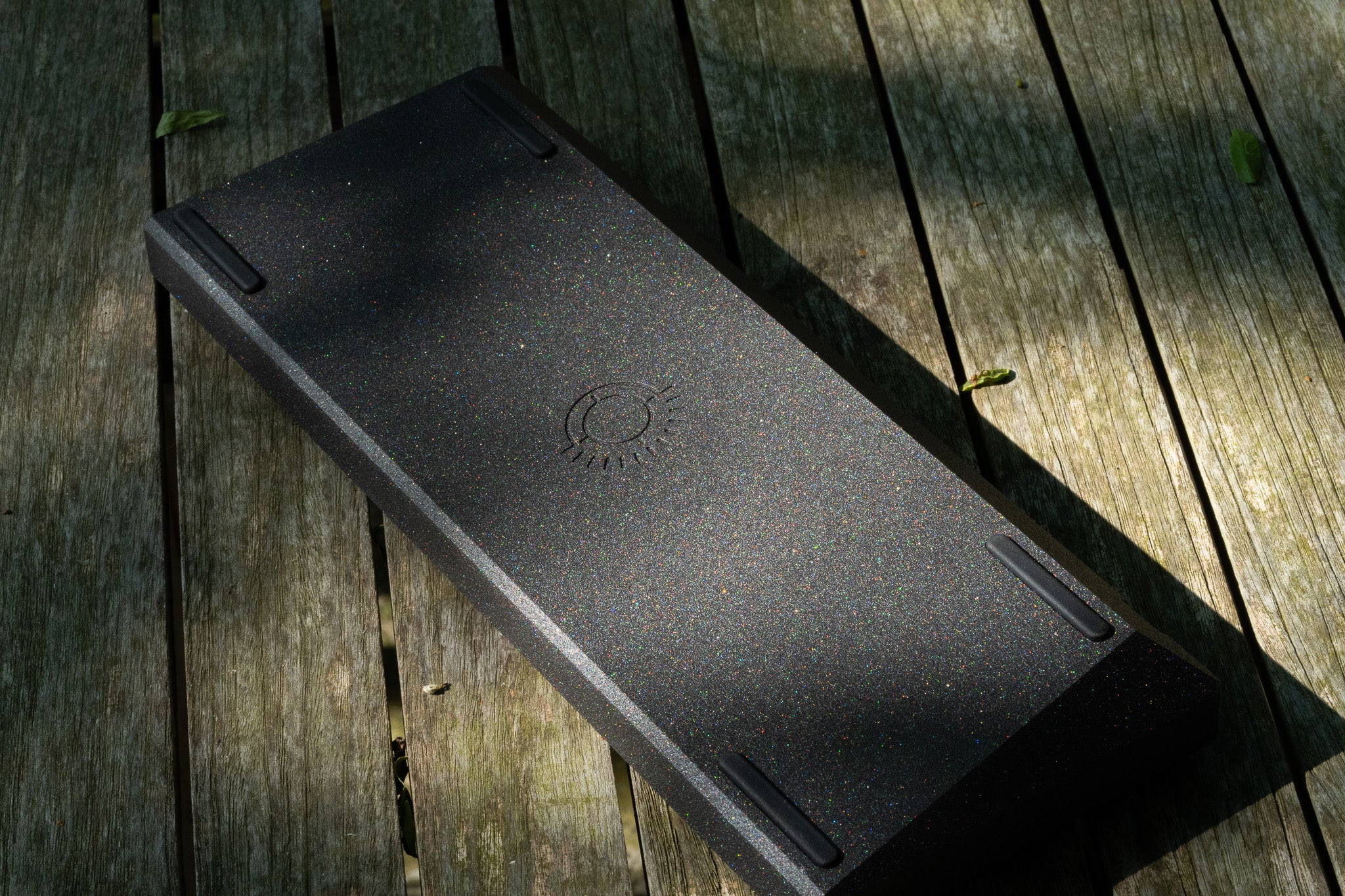

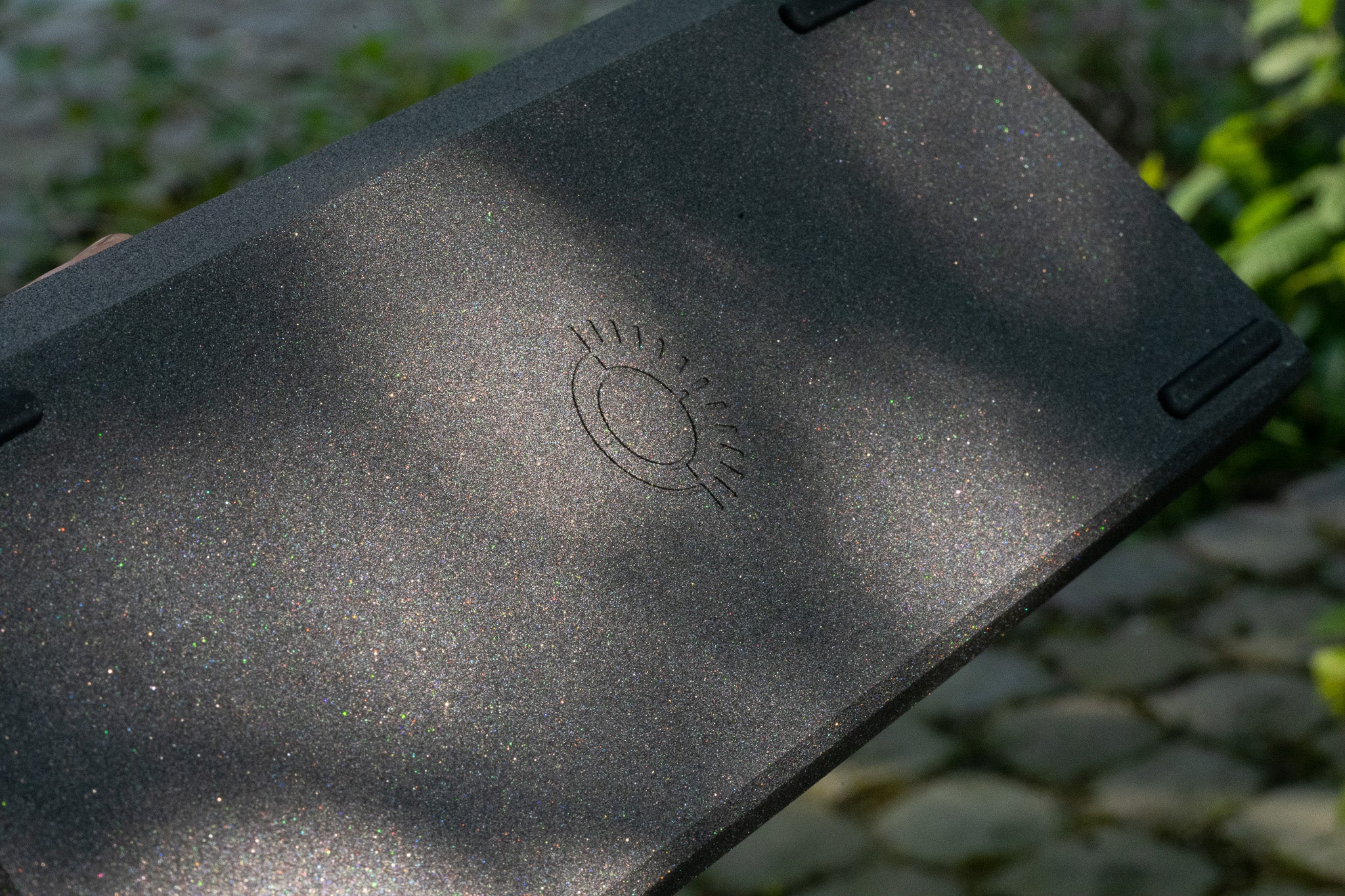

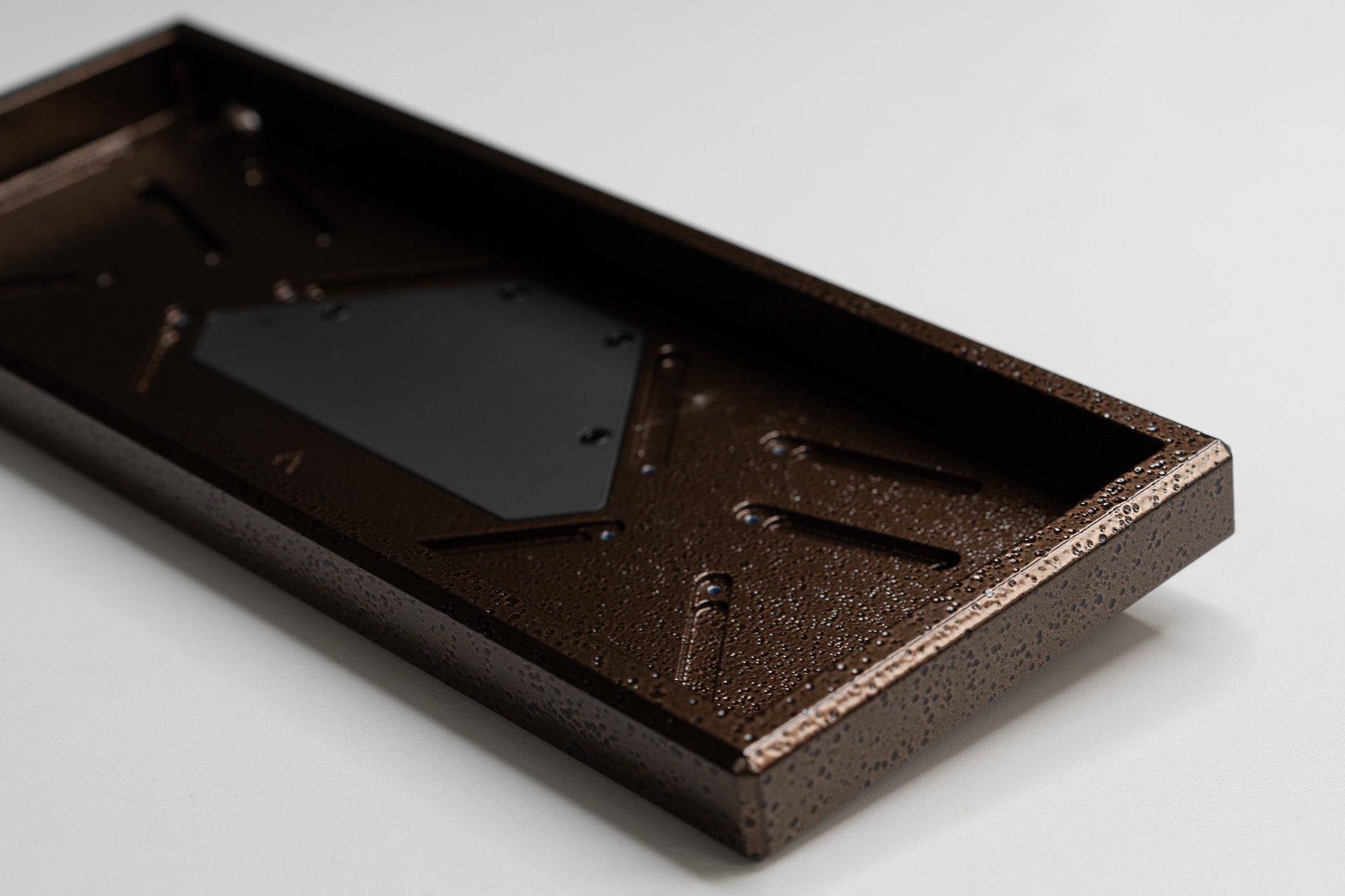

Bead-blasted anodized aluminium case

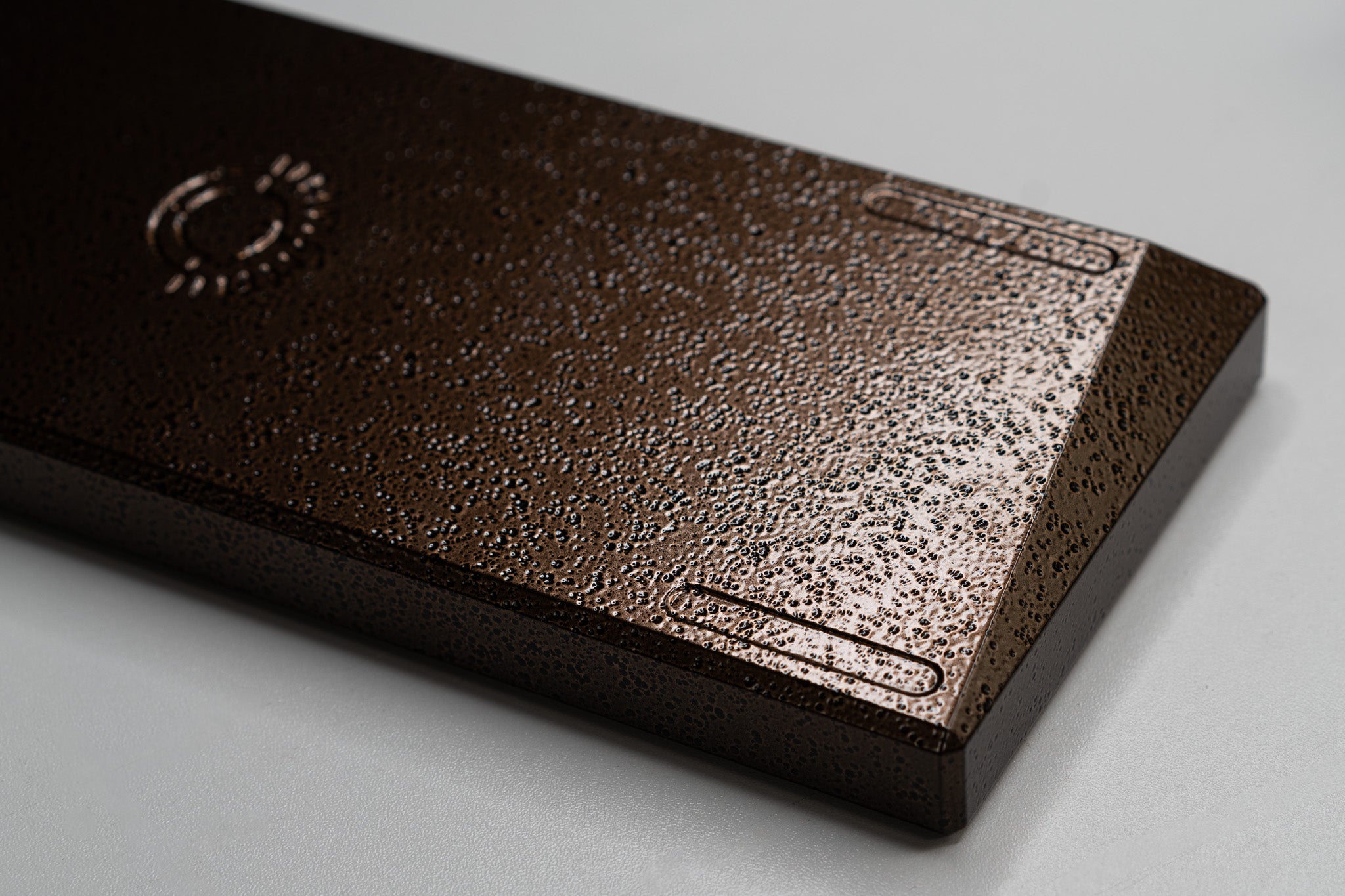

Bead-blasted cerakoted brass internal weight
Nickel plated, copper clad FR4 (fibreglass) plate
QMK compatible, fully programmable with VIA configurator
